Right Triangle Trigonometry

Learning Objectives

Introduction

Suppose you have to build a ramp and don’t know how long it needs to be. You know certain angle measurements and side lengths, but you need to find the missing pieces of information.

An image shows right triangle A B C. Angle A is 20 degrees, Angle B is labeled with a question mark, and angle C is 90 degrees. Side A B is the hypotenuse and it is labeled with a question mark. Side B C is opposite angle A and it is labeled 4. Side A C is adjacent to angle A and it is labeled with a question mark.

There are six trigonometric functions, or ratios, that you can use to compute what you don’t know. You will now learn how to use these six functions to solve right-triangle application problems.

Using the Pythagorean Theorem in Trigonometry Problems

There are several ways to determine the missing information in a right triangle. One of these ways is the Pythagorean TheoremThe formula that relates the lengths of the sides of any right triangle: `a^2+b^2=c^2`, where `c` is the hypotenuse, and `a` and `b` are the legs of the right triangle. , which states that `a^2+b^2=c^2`.

Suppose you have a right triangle in which `a` and `b` are the lengths of the legs, and `c` is the length of the hypotenuse, as shown below.

An image shows a right triangle with legs labeled A and B and a hypotenuse labeled C.

If you know the length of any two sides, then you can use the Pythagorean Theorem (`a^2+b^2=c^2`) to find the length of the third side. Once you know all the side lengths, you can compute all of the trigonometric functions.

Example

Problem



Find the values of `tanX`  and `secX`.

An image shows right triangle X Y Z. Side X Y is adjacent to angle X and it is labeled 5. Side Y Z is opposite angle X and it is labeled 12. Side X Z is the hypotenuse and it is labeled Z.



`tanX="opposite"/"adjacent"=12/5`

You can immediately find the tangent from the definition and the information in the diagram.



`5^2+12^2=z^2`

`25+144=z^2`

`169=z^2`
`13=z`

To find the value of the secant, you will need the length of the hypotenuse. Use the Pythagorean Theorem to find the length of the hypotenuse.



`secX="hypotenuse"/"adjacent"=z/5=13/5`

Now calculate `sec X` using the definition of secant.

Answer

`tanX=12/5,secX=13/5`





What is the value of `cscR`?



An image shows right triangle R S T. Side R S is adjacent to angle R and is labeled the square root of 3. Side S T is opposite angle R and is labeled R. Side R T is the hypotenuse and is labeled 3.



A) `sqrt3/3`



B) `3/sqrt3`



C) `3/sqrt6`



D) `3/sqrt12`



+

Show/Hide Answer

Some problems may provide you with the values of two trigonometric ratios for one angle and ask you to find the value of other ratios. However, you really only need to know the value of one trigonometric ratio to find the value of any other trigonometric ratio for the same angle.

Example

Problem

For acute angle `A`, `tanA=2/5`. Find the values of `cosA` and `secA`.



An image shows right triangle A B C. Side A B is the hypotenuse and is labeled H. Side B C is opposite angle A and is labeled 2. Side A C is adjacent to angle A and is labeled 5.

First you need to draw a right triangle in which `tanA=2/5`.

The tangent is the ratio of the opposite side to the adjacent side. The simplest triangle you can use that has that ratio is shown. It has an opposite side of length `2` and an adjacent side of length `5`. You could have used a triangle that has an opposite side of length `4` and an adjacent side of length `10`. (You just need the ratio to reduce to `2/5`).



`5^2+2^2=h^2`

`25+4=h^2`

`29=h^2`

`sqrt29=h`

You can use the Pythagorean Theorem to find the hypotenuse.



`cosA="adjacent"/"hypotenuse"=5/sqrt29`

Then use the definition of cosine to find `cosA`.



`secA=1/cosA=1/(5/sqrt29)=sqrt29/5`

Now use the fact that `sec A = 1/(cosA)` to find `secA`.

Answer

`cosA=5/sqrt29`, `secA=sqrt29/5`





Example

Problem

If angle `X` is an acute angle with `sinX=3/4`, what is the value of `cotX`?



An image shows right triangle X Y Z. Side X Y is the hypotenuse and is labeled 4. Side X Z is adjacent to angle X and is labeled Y. Side Y Z is opposite angle X and is labeled 3.

In this right triangle, because `sinX=3/4`, the ratio of the opposite side to the hypotenuse is `3/4`. The simplest triangle we can use that has that ratio would be the triangle that has an opposite side of length `3` and a hypotenuse of length `4`.



`y^2+3^2=4^2`

`y^2+9=16`

`y^2=7`

`y=sqrt7`

We can use the Pythagorean Theorem to find the unknown leg length.



`cotX="adjacent"/"opposite"=y/3=sqrt7/3`

`tanX="opposite"/"adjacent"=3/y=3/sqrt7`

`cotX=1/tanX=1/(3/sqrt7)=sqrt7/3`

You can find the cotangent using the definition.



Or you can find the cotangent by first finding tangent and then taking the reciprocal.

Answer

`cotX=sqrt7/3`



Solving Right Triangles

Determining all of the side lengths and angle measures of a right triangle is known as solving a right triangle. Let’s look at how to do this when you’re given one side length and one acute angle measure. Once you learn how to solve a right triangle, you’ll be able to solve many real world applications, such as the ramp problem at the beginning of this lesson, and the only tools you’ll need are the definitions of the trigonometric functions, the Pythagorean Theorem, and a calculator.

Example

Problem

You need to build a ramp with the following dimensions. Solve the right triangle shown below. Use the approximations `csc20^{\circ}≈2.92` and `tan20^{\circ}~~0.364`, and give the lengths to the nearest tenth.



An image shows right triangle A B C. Angle A is 20 degrees, angle B is not labeled, and angle C is 90 degrees. Side A B is the hypotenuse and it is labeled C. Side B C is opposite the 20-degree angle and it is labeled 4. Side A C is adjacent to the 20-degree angle and it is labeled B.

Remember that the acute angles in a right triangle are complementary, which means their sum is `90^@`. Since `m∠A=20^{\circ}`, it follows that `m∠B=90^@−20^@=70^@`.



`csc20^{\circ}="hypotenuse"/"opposite"`

`2.92~~c/4`

`4(2.92)~~c`

`11.68~~c`

You can use the definition of cosecant to find `c`. Substitute the measure of the angle on the left side of the equation and use the triangle to set up the ratio on the right. Solving the equation and rounding to the nearest tenth gives you `c≈11.7`.



`tan20^{\circ}="opposite"/"adjacent"`

`0.364~~4/b`

`0.364b~~4`

`b~~4/0.364~~10.989`

In a similar way, you can use the definition of tangent and the measure of the angle to find `b`. Solving the equation and rounding to the nearest tenth gives you `b≈11.0`.

Answer

An image shows right triangle A B C. Angle A is 20 degrees, angle B is 70 degrees, and angle C is 90 degrees. Side A B is the hypotenuse and it is labeled 11.7. Side B C is opposite the 20-degree angle and it is labeled 4. Side A C is adjacent to the 20-degree angle and it is labeled 11.0.

The ramp needs to be `11.7` feet long.



In the problem above, you were given the values of the trigonometric functions. In the next problem, you’ll need to use the trigonometric function keys on your calculator to find those values.

Example

Problem

Solve the right triangle shown below. Give the lengths to the nearest tenth.



An image shows right triangle X Y Z. Angle X is 46 degrees, angle Y is not labeled, and angle Z is 90 degrees. Side X Y is the hypotenuse and it is labeled 7. Side Y Z is opposite the 46-degree angle and it is labeled X. Side X Z is adjacent to the 46-degree angle and it is labeled Y.

The acute angles are complementary, which means their sum is `90^@`. Since `m∠X=46^@`, it follows that `m∠Y=90^@−46^@=44^@`.



`sin46^{\circ}="opposite"/"hypotenuse"`

`0.72~~x/7`

`7(0.72)~~x`

`5.04~~x`

You can use the definition of sine to find `x`. Use your calculator to find the value of `sin46^@` and the triangle to set up the ratio on the right. Solving the equation and rounding to the nearest tenth gives you `x≈5.0`.



`5.0^2+y^2~~7^2`

`25+y^2~~49`

`y^2~~24`

`y~~sqrt(24)`

`y~~4.899`

To find `y`, you can either use another trigonometric function (such as cosine) or you can use the Pythagorean Theorem. Solving the equation and rounding to the nearest tenth gives you `y≈4.9`.

Answer

An image shows right triangle X Y Z. Angle X is 46 degrees, angle Y is 44 degrees, and angle Z is 90 degrees. Side X Y is the hypotenuse and it is labeled 7. Side Y Z is opposite the 46-degree angle and it is labeled 5.0. Side X Z is adjacent to the 46-degree angle and it is labeled 4.9.



We now know all three sides and all three angles. Their values are shown in the drawing.



Sometimes you may be given enough information about a right triangle to solve the triangle, but that information may not include the measures of the acute angles. In this situation, you will need to use the inverse trigonometric function keys on your calculator to solve the triangle.

Example

Problem

Solve the right triangle shown below, given that `cotN=4/5`. Find the exact side lengths and approximate the angles to the nearest degree.



An image shows right triangle M N P. Side M N is the hypotenuse and it is labeled P. Side N P is adjacent to angle N and it is labeled 8. Side M P is opposite angle N and it is labeled N.

You are not given an angle measure, but you can use the definition of cotangent to find the value of `n`.



`cotN="adjacent"/"opposite"`

`4/5=8/n`

`4n=40`

`n=10`



Use the ratio you are given on the left side and the information from the triangle on the right side. Cross-multiply and solve for `n`.



`10^2+8^2=p^2`

`100+64=p^2`

`164=p^2`

`sqrt(164)=p`

Use the Pythagorean Theorem to find the value of `p`.



`tanM=8/10=0.8`

`M=tan^-1 0.8`

`M~~38.7^@`

We can use the triangle to find a value of the tangent and the inverse tangent key on your calculator to find the angle that yields that value. Rounding to the nearest degree, `∠M` is approximately `39^@`, `M≈39^@`. Subtract `39^@`, from `90^@` to get `N≈51^@`.

Answer

An image shows right triangle M N P. Side M N is the hypotenuse and it is labeled square root of 164. Side N P is adjacent to angle N and it is labeled 8. Side M P is opposite angle N and it is labeled 10.

We now know all three sides and all three angles. Their values are shown in the drawing.



What is the value of `x` to the nearest hundredth?



An image shows a right triangle with some labeled angles and sides. The given angles are 49 degrees and 90 degrees. The hypotenuse is labeled 3. The side adjacent to the 49-degree angle is labeled X. The side opposite the 49-degree angle is not labeled.



A) `4.57`



B) `1.97`



C) `0.90`



D) `0.22`



+

Show/Hide Answer

Special Angles

As a general rule, you need to use a calculator to find the values of the trigonometric functions for any particular angle measure. However, angles that measure `30^@`, `45^@`, and `60^@`, which you will see in many problems and applications, are special. You can find the exact values of these functions without a calculator. Let’s see how.

Suppose you had a right triangle with an acute angle that measured `45^@`. Since the acute angles are complementary, the other one must also measure `45^@`. Because the two acute angles are equal, the legs must have the same length, for example, `1` unit.

An image shows a right triangle with a 90-degree angle and two 45-degree angles. The legs are labeled 1 and the hypotenuse is labeled H.

You can determine the hypotenuse using the Pythagorean Theorem.

`1^2+1^2=h^2`

`1+1=h^2`

`2=h^2`

`sqrt2=h`

Now you have all the sides and angles in this right triangle.

An image shows a right triangle with a 90-degree angle and two 45-degree angles. The legs are labeled 1 and the hypotenuse is labeled the square root of 2.

You can use this triangle (which is sometimes called a `45^@` - `45^@` - `90^@`  triangle) to find all of the trigonometric functions for `45^@`. One way to remember this triangle is to note that the hypotenuse is `sqrt2` times the length of either leg.

Example

Problem

Find the values of the six trigonometric functions for `45^@` and rationalize denominators, if necessary.



`sin45^@="opposite"/"hypotenuse"= 1/sqrt2=1/sqrt2*sqrt2/sqrt2=sqrt2/2`

`cos45^@="adjacent"/"hypotenuse"= 1/sqrt2=1/sqrt2*sqrt2/sqrt2=sqrt2/2`

`tan45^@=1/1=1`





Use the definitions of sine, cosine and tangent. Notice that because the opposite and adjacent sides are equal, sine and cosine are equal.



`csc45^@=1/(sin45^@)=1/(1/sqrt2)=sqrt2/1=sqrt2`

`sec45^@=1/(cos45^@)=1/(1/sqrt2)=sqrt2/1=sqrt2`

`cot45^@=1/(tan45^@)=1/1=1`



Use the reciprocal identities. Notice that because the opposite and adjacent sides are equal, cosecant and secant are equal.

Answer

`sin45^@=cos45^@=sqrt2/2, tan45^@=1`

`csc45^@=sec45^@=sqrt2, cot45^@=1`






You can construct another triangle that you can use to find all of the trigonometric functions for `30^@` and `60^@`. Start with an equilateral triangle with side lengths equal to `2` units. If you split the equilateral triangle down the middle, you produce two triangles with `30^@`, `60^@` and `90^@` angles. These two right triangles are congruent. They both have a hypotenuse of length `2` and a base of length `1`.

An image shows an equilateral triangle split down the middle to make two triangles. Each triangle has angle measures: 30 degrees, 60 degrees, and 90 degrees. The hypotenuse of each triangle is labeled 2, the base of each triangle is labeled 1, and the height of each triangle is labeled X.

You can determine the height using the Pythagorean Theorem.

`x^2+1^2=2^2`

`x^2+1=4`

`x^2=3`

`x=sqrt3`

Here is the left half of the equilateral triangle turned on its side.

An image shows a triangle that has a 30-degree angle, a 60-degree angle, and a 90-degree angle. The hypotenuse is labeled 2. The side opposite the 30-degree angle is labeled 1. The side opposite the 60-degree angle is labeled the square root of 3.

You can use this triangle (which is sometimes called a `30^@` - `60^@` - `90^@` triangle) to find all of the trigonometric functions for `30^@` and `60^@`. Note that the hypotenuse is twice as long as the shortest leg, which is opposite the `30^@` angle, so that `sin30^@=1/2`. The length of the longest leg, which is opposite the `60^@` angle is `sqrt3` times the length of the shorter leg.

Example

Problem

Find the values of `cos30^@`, `tan60^@`, `sec30^@`, and `cot60^@`. Rationalize denominators, if necessary.



`cos30^@=sqrt3/2`

`tan60^@=sqrt3/1=sqrt3`











Use the definitions of sine, cosine and tangent. For each angle, be sure to use the legs that are opposite and adjacent to that angle. For example, `sqrt3` is opposite to `60^@`, but adjacent to `30^@`.



`sec30^@=1/(sqrt3/2)=2/sqrt3=2/sqrt3*sqrt3/sqrt3=(2sqrt3)/3`

`cot60^@=1/sqrt3=1/sqrt3*sqrt3/sqrt3=sqrt3/3`

Remember that secant is the reciprocal of cosine and that cotangent is the reciprocal of tangent. Rationalize the denominators.

Answer

`cos30^@=sqrt3/2, sec30^@=(2sqrt3)/3`

`tan60^@=sqrt3, cot60^@=sqrt3/3`





You can use the information from the `30^@` - `60^@` - `90^@` and `45^@` - `45^@` - `90^@` triangles to solve similar triangles without using a calculator.

Example

Problem

What is the value of `x` in the triangle below?



An image shows a right triangle. The Legs are labeled X and the hypotenuse is labeled 5.

Since the two legs have the same length, the two acute angles must be equal, so they are each `45^@`.





`sqrt2*x` `=5`
`x` `=5/sqrt2`
  `=5/sqrt2*sqrt2/sqrt2`
  `=(5sqrt2)/2`







`sin45^@` `=x/5`
`5*sin45^@` `=x`
`5*1/sqrt2` `=x`
`5/sqrt2` `=x`
`x` `=(5sqrt2)/2`



In a `45^@` - `45^@` - `90^@` triangle, the length of the hypotenuse is`sqrt2` times the length of a leg. You can use this relationship to find `x`. Remember to rationalize the denominator.



Here is another way you can solve this problem. You can use the definition of sine to find `x`.

Answer

`x=(5sqrt2)/2`





You also could have solved the last problem using the Pythagorean Theorem, which would have produced the equation `x^2+x^2=5^2`.

Example

Problem

Solve the right triangle shown below.



An image shows right triangle A B C. Angle A is unknown, angle B is 30 degrees, and angle C is 90 degrees. Side A B is the hypotenuse and it is labeled C. Side B C is opposite angle A and it is labeled A. Side A C is opposite the 30-degree angle and it is labeled 4.

The acute angles are complementary, so `m/_A=60^@`. This is a `30^@` - `60^@` - `90^@` triangle. We can now use the trigonometric functions to find the lengths of the missing sides.



`sin30^@=4/c`

`1/2=4/c`

`c=8`

Since we know all the measures of the angles, we now need to find the lengths of the missing sides. To find `c` (the length of the hypotenuse), we can use the sine function because we know that `sin30^@=1/2` and we know the length of the opposite side.



`tan60^@=a/4`

`sqrt3=a/4`

`4sqrt3=a`

To find `a` (the length of the side opposite angle `A`), we can use the tangent function because we know that `tan60^@=sqrt3` and we know the length of the adjacent side.

Answer

An image shows right triangle A B C. Angle A is 60 degrees, angle B is 30 degrees, and angle C is 90 degrees. Side A B is the hypotenuse and it is labeled 8. Side B C is opposite the 60-degree angle and it is labeled 4 times the square root of 3. Side A C is opposite the 30-degree angle and it is labeled 4.

We now know all three sides and all three angles. Their values are shown in the drawing.



If `cosx=1/2`, what is the value of `csc x`?



A) `2`



B) `sqrt3/3`



C) `sqrt6/3`



D) `(2sqrt3)/3`



+

Show/Hide Answer

Using Trigonometry in Real-World Problems

There are situations in the real world, such as building a ramp for a loading dock, in which you have a right triangle with certain information about the sides and angles, and you wish to find unknown measures of sides or angles. This is where understanding trigonometry can help you.

Example

Problem

Ben and Emma are out flying a kite. Emma can see that the kite string she is holding is making a `70`° angle with the ground. The kite is directly above Ben, who is standing `50` feet away. To the nearest foot, how many feet of string has Emma let out?



An image shows a right triangle with angles labeled Emma, Kite, and Ben. The angle at Emma is 70 degrees, the angle at kite is unknown, and the angle at Ben is 90 degrees. The side that goes from Emma to the kite is the hypotenuse and it is labeled X. The side opposite the 70-degree angle, from the kite to Ben, is not labeled. The side adjacent to the 70-degree angle, that goes from Emma to Ben, is labeled 50 feet.

We want to find the length of string let out. It is the hypotenuse of the right triangle shown.



`cos70^@=50/x`

Since the `50`-foot distance measures the adjacent side to the `70`° angle, you can use the cosine function to find `x`.



`x*cos70^@=50`

`x=50/(cos70^@)`

`x=50/(0.342...)`

`x=146.19...`

Solve the equation for `x`. Use a calculator to find a numerical value. The answer rounds to `146`.

Answer

Emma has let out approximately `146` feet of string.

In the example above, you were given one side and an acute angle. In the next one, you’re given two sides and asked to find an angle. Finding an angle will usually involve using an inverse trigonometric function. The Greek letter theta, `theta`, is commonly used to represent an unknown angle. In this example, `theta` represents the angle of elevation.

Example

Problem

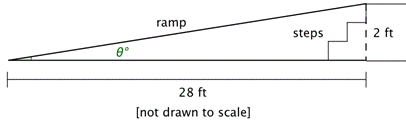

A wheelchair ramp is placed over a set of stairs so that one end is `2` feet off the ground. The other end is at a point that is a horizontal distance of `28` feet away, as shown in the diagram. What is the angle of elevation to the nearest tenth of a degree?

A diagram shows the wheelchair ramp placed over the set of stairs forms a right triangle. The angle of elevation is labeled theta. The stairs are opposite angle theta and labeled 2 feet. The ground is adjacent to angle theta and labeled 28 feet. The ramp is the hypotenuse.





The angle of elevation is labeled `theta^@` in the diagram. The lengths given are the sides opposite and adjacent to this angle, so you can use the tangent function to find `theta`.



`tan theta^@`

 `=` `2/28`
`tan theta^@` `=` `1/14`
`theta^@` `=` `tan^-1 (1/14)`
`theta` `=` `4.0856...`

You want to find the measure of an angle that gives you a certain tangent value. This means that you need to find the inverse tangent. Remember that you have to use the keys `2"ND"` and TAN on your calculator. Look at the hundredths place to round to the nearest tenth.

Answer

The angle of elevation is approximately `4.1^@`.

Remember that problems involving triangles with certain special angles can be solved without the use of a calculator.

Example

Problem

A fence is used to make a triangular enclosure with the longest side equal to `30` feet, as shown below. What is the exact length of the side opposite the `60^@` angle?



An image shows a right triangle with some labeled angles and sides. The given angle measurements are 60 degrees and 90 degrees. The hypotenuse is labeled 30 feet. The side opposite the 60-degree angle is labeled X.

Call the unknown length `x`. Since you know the length of the hypotenuse, you can use the sine function.



`sin60^@=x/30`

`sqrt3/2=x/30`

This is a `30^@` - `60^@` - `90^@` triangle. Therefore, you can find the exact value of the trigonometric function without using a calculator.



`x=(30sqrt3)/2=15sqrt3`

Solve the equation for `x`.

Answer

The exact length of the side opposite the `60^@` angle is `15sqrt3` feet.

Sometimes the right triangle can be part of a bigger picture.

A guy wire is attached to a telephone pole `3` feet below the top of the pole, as shown below. The guy wire is anchored `14` feet from the telephone pole and makes a `64^@` angle with the ground. How high up the pole is the guy wire attached? Round your answer to the nearest tenth of a foot.



An image shows the guy wire, the telephone pole from the base to where the guy wire is attached 3 feet below the top of the pole, and the ground make a right triangle. The guy wire is the hypotenuse and is not labeled. The telephone pole is opposite the 64-degree angle and it is labeled with a question mark. The ground is adjacent to the 64-degree angle and it is labeled 14 feet.



A) `14*sin64^@~~12.6" feet"`



B) `14*tan64^@~~28.7" feet"`



C) `14*tan64^@" + "3~~31.7" feet"`



D) `14/(cos64^@)~~31.9 " feet"`



+

Show/Hide Answer

Summary

There are many ways to find the missing side lengths or angle measures in a right triangle. Solving a right triangle can be accomplished by using the definitions of the trigonometric functions and the Pythagorean Theorem. This process is called solving a right triangle. Being able to solve a right triangle is useful in solving a variety of real-world problems such as the construction of a wheelchair ramp.

You can find the exact values of the trigonometric functions for angles that measure `30^@`, `45^@`, and `60^@`. You can find exact values for the sides in `30^@`, `45^@`, and `60^@` triangles if you remember that `sin45^@=1/sqrt2` and `sin30^@=1/2`. For other angle measures, it is necessary to use a calculator to find approximate values of the trigonometric functions.
