Figures in `1` and `2` Dimensions

Learning Objectives

Introduction

You use geometric terms in everyday language, often without thinking about it. For example, any time you say “walk along this line” or “watch out, this road quickly angles to the left” you are using geometric terms to make sense of the environment around you. You use these terms flexibly, and people generally know what you are talking about.

In the world of mathematics, each of these geometric terms has a specific definition. It is important to know these definitions, as well as how different figures are constructed, to become familiar with the language of geometry. Let’s start with a basic geometric figure: the plane.

Figures on a Plane

A plane In geometry, a two-dimensional surface that continues infinitely. Any three individual points that don't lie on the same line will lie on exactly one plane.is a flat surface that continues forever (or, in mathematical terms, infinitely) in every direction. It has two dimensions: length and width.

You can visualize a plane by placing a piece of paper on a table. Now imagine that the piece of paper stays perfectly flat and extends as far as you can see in two directions, left-to-right and front-to-back. This gigantic piece of paper gives you a sense of what a geometric plane is like: it continues infinitely in two directions. (Unlike the piece of paper example, though, a geometric plane has no height.)

A plane can contain a number of geometric figures. The most basic geometric idea is a pointA zero-dimensional object that defines a specific location on a plane. It is represented by a small dot., which has no dimensions. A point is simply a location on the plane. It is represented by a dot. Three points that don’t lie in a straight line will determine a plane.

The image below shows four points, labeled A, B, C, and D.

The points are scattered, and no three points lie in a straight line.

Two points on a plane determine a line. A lineA line is a one-dimensional figure, which extends without end in two directions. is a one-dimensional figure that is made up of an infinite number of individual points placed side by side. In geometry, all lines are assumed to be straight; if they bend, they are called a curve. A line continues infinitely in two directions.

Below is line AB or, in geometric notation, `overset(harr)(AB)`. The arrows indicate that the line keeps going forever in the two directions. This line could also be called line BA. While the order of the points does not matter for a line, it is customary to name the two points in alphabetical order.

The image below shows the points A and B and the line `overset(harr)(AB)`.

The image shows a line that goes through points A and B and extends beyond the points with an arrow at each end.

Example

Problem

Name the line shown in red.





An image shows scattered points A, B, C, D, E, and F. The red line goes through points C and F.

The red line goes through the points `C` and `F`, so the line is `overset(harr)(CF)`.

Answer

`overset(harr)(CF)`



There are two more figures to consider. The section between any two points on a line is called a line segmentA finite section of a line between any two points that lie on the line.. A line segment can be very long, very short, or somewhere in between. The difference between a line and a line segment is that the line segment has two endpoints and a line goes on forever. A line segment is denoted by its two endpoints, as in `bar(CD)` .

An image shows a line segment that starts at point C and ends at point D.

A rayA half-line that begins at one point and goes on forever in one direction. has one endpoint and goes on forever in one direction. Mathematicians name a ray with notation like `overset(rarr)(EF)`, where point `E` is the endpoint and `F` is a point on the ray. When naming a ray, we always say the endpoint first. Note that `overset(rarr)(FE)` would have the endpoint at `F`, and continue through `E`, which is a different ray than `overset(rarr)(EF)`, which would have an endpoint at `E`, and continue through `F`.

The term “ray” may be familiar because it is a common word in English. “Ray” is often used when talking about light. While a ray of light resembles the geometric term “ray,” it does not go on forever, and it has some width. A geometric ray has no width; only length.

Below is an image of ray `EF` or `overset(rarr)(EF)`. Notice that the end point is `E`.

The image shows a ray that starts at endpoint E, passes through point F, and has an arrow at the end of the half-line.

Example

Problem

Identify each line and line segment in the picture below.



A picture shows intersecting lines, a line segment, and points. Line segment DF starts at point D and ends at point F. Line CE has an arrow at each end and contains points C and E. Line BG has an arrow at each end and contains points B and G. Lines CE and BG intersect. Point A floats below point B and does not touch any lines or line segments.

Two points define a line, and a line is denoted with arrows. There are two lines in this picture: `overset(harr)(CE)` and `overset(harr)(BG)`.



A line segment is a section between two points. `bar(DF)`  is a line segment. But there are also two more line segments on the lines themselves: `bar(CE)` and `bar(BG)`.

Answer

Lines: `overset(harr)(CE), overset(harr)(BG)`

Line segments: `bar(DF), bar(CE), bar(BG)`





Example

Problem

Identify each point and ray in the picture below.



A picture shows a line, a ray, and points. Line AD has an arrow at each end and contains points A and D. Ray BC starts at point B, passes through point C, and has an arrow at the end.

There are four points: `A`, `B`, `C`, and `D`.



There are also three rays, though only one may be obvious.



Ray `overset(rarr)(BC)` begins at point `B` and goes through `C`. Two more rays exist on line `overset(harr)(AD)`: they are `overset(rarr)(DA)` and `overset(rarr)(AD)`.

Answer

Points: `A, B, C, D`

Rays: `overset(rarr)(BC), overset(rarr)(AD), overset(rarr)(DA)`





Which of the following is not represented in the image below?



An image shows intersecting lines, line segments, rays, and points. Ray AC starts at point A, moves left horizontally through points B and C, and has an arrow at the end. Line BG is vertical and has an arrow at each end and contains points B, E and G. Line BG is perpendicular to ray AC. They intersect at point B. Line segment DF starts at D, ends at F, and contains points E and A. Line segment DF intersects line BG at point E and intersects line AC at point A.



A) `overset(harr)(BG)`



B) `overset(rarr)(BA)`



C) `bar(DF)`



D) `overset(rarr)(AC)`



+

Show/Hide Answer



Angles

Lines, line segments, points, and rays are the building blocks of other figures. For example, two rays with a common endpoint make up an angleA figure formed by the joining of two rays with a common endpoint.. The common endpoint of the angle is called the vertexA turning point in a graph. Also the endpoint of the two rays that form an angle..

The angle `ABC` is shown below. This angle can also be called `angleABC`, `angleCBA` , or simply `angleB`. When you are naming angles, be careful to include the vertex (here, point `B`) as the middle letter.

An image shows two rays that make up the angle A B C. Point B marks the vertex.

The image below shows a few angles on a plane. Notice that the label of each angle is written “point-vertex-point,” and the geometric notation is in the form `angleABC`.

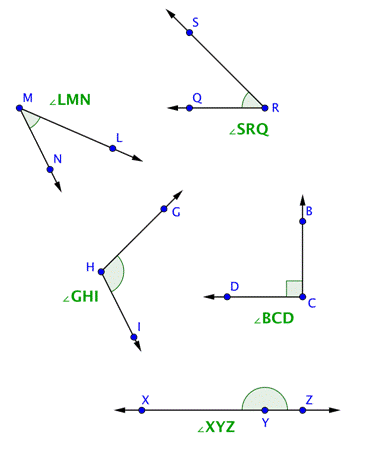

An image shows a series of angles. An angle with points L, M, and N is labeled angle L M N, and the vertex is point M. An angle with points S, R, Q is labeled angle S R Q, and the vertex is point R. An angle with points G, H, and I is labeled angle G H I, and the vertex is point H. An angle with points B, C, and D is labeled angle B C D, and the vertex is point C. An angle with points X, Y, and Z is labeled angle X Y Z, and the vertex is point Y.

Sometimes angles are very narrow; sometimes they are very wide. When people talk about the “size” of an angle, they are referring to the arc between the two rays. The length of the rays has nothing to do with the size of the angle itself. Drawings of angles will often include an arc (as shown above) to help the reader identify the correct ‘side’ of the angle.

Think about an analog clock face. The minute and hour hands are both fixed at a point in the middle of the clock. As time passes, the hands rotate around the fixed point, making larger and smaller angles as they go. The length of the hands does not impact the angle that is made by the hands.

An angle is measured in degrees, represented by the degree symbol, which is a small circle at the upper right of a number. For example, a circle is defined as having `360^@`. (In skateboarding and basketball, “doing a `360`” refers to jumping and doing one complete body rotation.)

A right angleAn angle measuring exactly `90^@`. is any degree that measures exactly `90^@`. This represents exactly one-quarter of the way around a circle. Rectangles contain exactly four right angles. A corner mark is often used to denote a right angle, as shown in right angle `DCB` below.

Angles that are between `0^@` and `90^@` (smaller than right angles) are called acute anglesAn angle measuring less than `90^@`. . Angles that are between `90^@` and `180^@` (larger than right angles and less than `180^@`) are called obtuse anglesAn angle measuring more than `90^@` and less than `180^@`. . And an angle that measures exactly `180^@` is called a straight angleAn angle measuring exactly `180^@`. because it forms a straight line!

An image shows many angles on a plane. An acute angle labeled L M N is 40 degrees. An acute angle labeled S R Q is 45 degrees. An obtuse angle labeled G H I is 108 degrees. A right angle labeled B C D is 90 degrees. And a straight angle, also called a line, labeled X Y Z is 180 degrees.

Example

Problem

Label each angle below as acute, right, or obtuse.

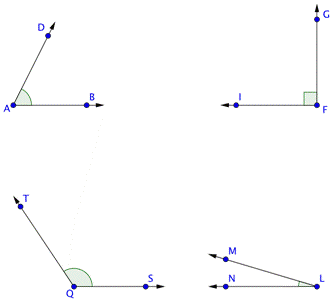

An image shows 4 angles on a plane. Angle D A B is approximately 55 degrees. Angle G F I has a 90-degree mark at vertex F. Angle T Q S is approximately 120 degrees. And M L N is approximately 30 degrees.

You can start by identifying any right angles.



`angleGFI` is a right angle, as indicated by the corner mark at vertex `F`.



Acute angles will be smaller than `angleGFI` (or less than `90^@`). This means that `angleDAB`  and `angleMLN` are acute.



`angleTQS` is larger than `angleGFI`, so it is an obtuse angle.

Answer

`angleDAB`  and `angleMLN` are acute angles.

`angleGFI` is a right angle.

`angleTQS` is an obtuse angle.





Example

Problem

Identify each point, ray, and angle in the figure below.



The figure shows 4 points, 5 rays and 3 angles. Line F G passes through points F, J and G. Ray J E extends from line F G at point J.

Begin by identifying each point in the figure. There are `4`: `E`, `F`, `G`, and `J`.



The figure shows 4 points, 5 rays and 3 angles. Line F G passes through points F, J and G. Ray J E extends from line F G at point J. Line F G and ray J E are highlighted to show all five rays.

Now find rays. A ray begins at one point, and then continues through another point towards infinity (indicated by an arrow). Three rays start at point `J`: `overset(rarr)(JE), overset(rarr)(JF)` , and `overset(rarr)(JG)`. But also notice that a ray could start at point `F` and go through `J` and `G`, and another could start at point `G` and go through `J` and `F`. These rays can be represented by `overset(rarr)(GF)` and `overset(rarr)(FG)`.



The figure shows 4 points, 5 rays and 3 angles. Line F G passes through points F, J and G. Ray J E extends from line F G at point J. Angle F J E is labeled acute. Angle E J G is labeled obtuse.

Finally, look for angles. `angleEJG` is obtuse, `angleEJF` is acute, and `angleFJG` is straight. (Don’t forget those straight angles!)

Answer

Points: `E, F, G, J`

Rays: `overset(rarr)(JE), overset(rarr)(JG), overset(rarr)(JF), overset(rarr)(GF), overset(rarr)(FG)`

Angles: `angleEJG`, `angleEJF`, `angleFJG`





Identify the acute angles in the image below.



The image shows line W Z contains points W, A, and Z. Two rays start at point A: Ray A X and Ray A Y. Angle W A Z is more than 90 degrees. Angle W A X is less than 90 degrees. Angle X A Y is more than 90 degrees. Angle Y A Z is less than 90 degrees.



A) `angle WAX`, `angleXAY`, and `angleYAZ`



B) `angleWAY`  and `angleYAZ`



C) `angleWAX`  and `angleYAZ`



D) `angleWAZ`  and `angleXAY`



+

Show/Hide Answer



Measuring Angles with a Protractor

Learning how to measure angles can help you become more comfortable identifying the difference between angle measurements. For instance, how is a `135^@` angle different from a `45^@` angle?

Measuring angles requires a protractor, which is a semi-circular tool containing `180` individual hash marks. Each hash mark represents `1^@`. (Think of it like this: a circle is `360^@`, so a semi-circle is `180^@`.) To use the protractor, do the following three steps:

  1. line up the vertex of the angle with the dot in the middle of the flat side (bottom) of the protractor,
  2. align one side of the angle with the line on the protractor that is at the zero degree mark, and
  3. look at the curved section of the protractor to read the measurement.

Supplemental Interactive Activity

For practice using a protractor, try out the activity below:

The example below shows you how to use a protractor to measure the size of an angle.

Example

Problem















Use a protractor to measure the angle shown below.



The image shows an acute angle A B C.

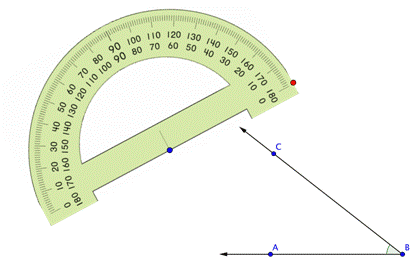

An image shows acute angle A B C and a protractor.



Use a protractor to measure the angle.



The image of the angle and the protractor shows that vertex B is on a blue dot at the bottom center of the protractor, but the rays are not aligned.



Align the blue dot on the protractor with the vertex of the angle you want to measure.

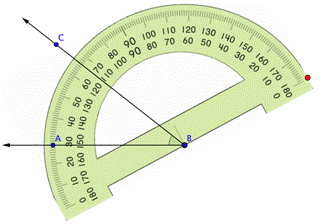

The image of the angle and the protractor shows that vertex B is aligned with the blue dot at the bottom center of the protractor and ray B A is on 0.



Rotate the protractor around the vertex of the angle until the side of the angle is aligned with the `0` degree mark of the protractor.

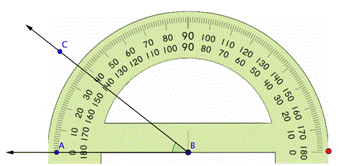

The image of the angle and the protractor shows that vertex B is aligned with the blue dot at the bottom center of the protractor, ray B A is on 0, and ray B C is on 38 degrees.



Read the measurement, in degrees, of the angle. Begin with the side of the angle that is aligned with the `0^@` mark of the protractor and count up from `0^@`. This angle measures `38^@`.

Answer

The angle measures `38^@`.



What is the measurement of the angle shown below?

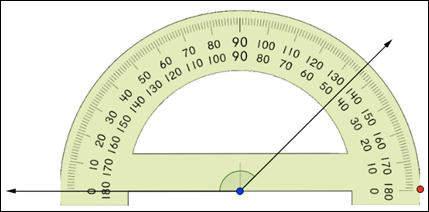

The image shows a protractor measuring an obtuse angle. The vertex aligns with the bottom center of the protractor, one ray aligns with 0, and the other ray aligns at between 130 and 140 degrees



A) `45^@`



B) `135^@`



C) `145^@`



D) `180^@`



+

Show/Hide Answer



Summary

Geometric shapes and figures are all around us. A point is a zero-dimensional object that defines a specific location on a plane. A line is made up of an infinite number of points, all arranged next to each other in a straight pattern, and going on forever. A ray begins at one point and goes on towards infinity in one direction only. A plane can be described as a two-dimensional canvas that goes on forever.

When two rays share an endpoint, an angle is formed. Angles can be described as acute, right, obtuse, or straight, and are measured in degrees. You can use a protractor (a special math tool) to closely measure the size of any angle.
